IBOARD IR Finger Touch Interactive Whiteboard Non Air Gap

Product Categories
Shenzhen Iboard Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

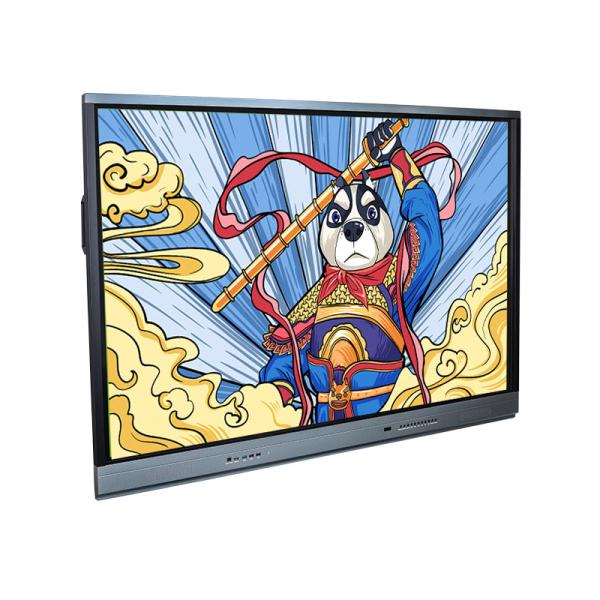

IBOARD IR Finger Touch Interactive Whiteboard Non Air Gap

  • 1
  • 2

Brand Name : IBOARD

Model Number : TE-XP-65

Certification : CE,FCC,ROHS,WEEE

Place of Origin : CHINA

MOQ : 10pcs

Price : USD950-1200/PC

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs per month

Delivery Time : 15-20 working days

Packaging Details : carton box, 1pc/carton, could be with wooden crate and pallet

Model : IR Interactive Whiteboard Non Air Gap Temper Glass No Side Bar Android System

Brightness : 350cd/m3

Touch Technology : Infrared touch

Response time : 6.5 ms

Speaker output : 15W * 2

Andriod version : 8.0/9.0

Positioning resolution : 32767 x 32767

Writing style : Finger; Stylus，any opaque object

Contact Now

IR Interactive Whiteboard Non Air Gap DLED Display 6.5ms Response Time Andriod Windows 20 Points

IBOARD IR Finger Touch Interactive Whiteboard Non Air GapIBOARD IR Finger Touch Interactive Whiteboard Non Air Gap

Iboard's IR multi finger touch XP series monitor display, workable with 65" 75" and 86".

Specification

display
Screen Type TFT LED Display Ratio 16:9
Display Area 1428.5*803.5 mm(64.53 inch) View Angle 178°
Resolution 3840(H) x 2160(V) Response Time 6.5 ms
Brightness 350 cd/m3 Color Depth 10bit(R), 1.07Billon colors
Contrast 4000:1 Life Time 50,000 Hrs
TV SYSTEM
Connection N/A Sound System D/K, B/G, I, M
Video System PAL, NTSC, SECAM Channel N/A
Sound/SPeaker features
Speaker Type Built-In Speaker output 15W * 2
Audio Stereo Balance, Auto volume control, surround sound
android system
Android Version Android 8.0 GPU ARM Mali-m51450MHz
CPU

2*ARM Cortex-A73

2*ARM Cortex-A53

 RAM 4G,(8Gbit×4)；DDR4；
Dominant Frequency 1.5G ROM 32G
DISPLAY CONNECTION PORTS
Input Ports (Front) HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;
Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1
TOUCH SYSTEM
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Response size ≥Φ3mm OS support Android, Windows, Linux, Mac, Chrome
Internet
Ethernet 802.3 10/100 Wifi

IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz

Or IEEE802.11an 2.4GHz
Bluetooth 5.0
Power
Voltage Range AC(100～240)V-50/60HZ Rated Power <250W
Stand Power <1W

Model TE-XP-65 TE-XP-75 TE-XP-86
Resolution

3840(H) x 2160(V)

3840(H) x 2160(V)

3840(H) x 2160(V)
Color depth

10bit(R), 1.07Billon colors
Andriod version 8.0
CPU

2*ARM Cortex-A73

2*ARM Cortex-A53
Input ports

HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC)

USB-C(optional)
Output ports

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1
Input ports(back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1

Model TE-XP-65 TE-XP-75 TE-XP-86
Sensing type

Infrared Touch
Surface glass

4mm tempered Glass
OS support

Android, Windows, Linux, Mac, Chrome
Writing style

Finger; Stylus,any opaque object
WIFI

IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz

Or IEEE802.11an 2.4GHz
Bluetooth 4.0 4.0 4.0
Voltage range

AC(100～240)V-50/60HZ

Packing details:

Model TE-XP-65 TE-XP-75 TE-XP-86
Product size 1486*924*89mm 1713*1054*90mm 1959*1193*89mm
Packing size 1646*1050*240mm 1873*1204*240mm 2120*1353*240mm
N.W. 38KGS 56KGS 72KGS
G.W. 52KGS 73KGS 93KGS
Packing accessories Touch USB cable*1, HDMI Cable*1,Power supply cord*1,Touch pen*2,Remote controller*1,Warranty card*1

Company info.

IBOARD IR Finger Touch Interactive Whiteboard Non Air Gap

FAQ:

1. What is your delivery time for IR interactive Whiteboard?

- 15-20 working days. Depends on the order qty and requirements.

2.What is the production capacitivity per month for your products?

-Approx. 5000pcs for Touch monitor, and 10,000pcs for Whiteboard.

3.Do your products accept OEM and ODM?

--Yes, products logo, packaing,software,etc.
